Aker Solutions offers Casing Stabilizer Arm for tubular handling
Nov. 26, 2013
Aker Solutions has developed the Casing Stabilizer Arm, which Aker says eliminates the need for a person to be elevated on a derrick for tubular makeup.

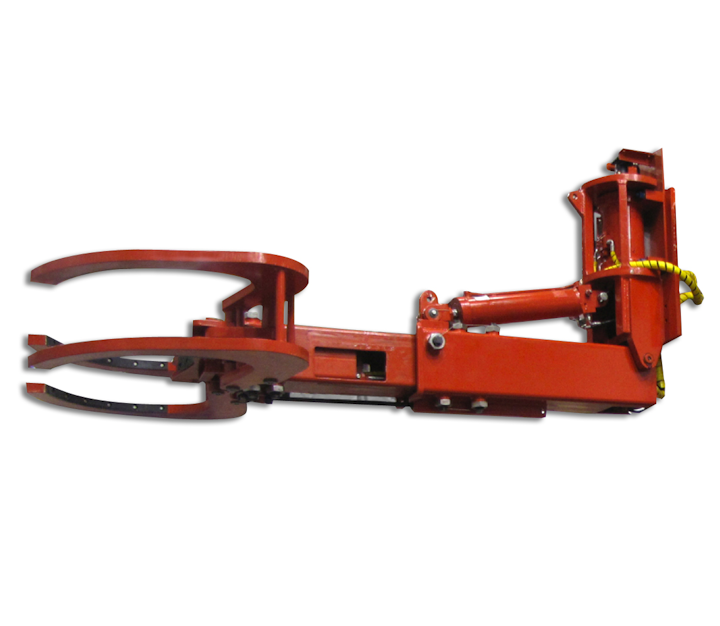

Aker Solutions' Casing Stabilizer Arm
Offshore staff
HOUSTON –Aker Solutions has developed the Casing Stabilizer Arm (CSA), which Aker says eliminates the need for a person to be elevated on a derrick for tubular makeup. The CSA is designed for both offshore and onshore rigs.
The CSA’s stabilizing mechanism is stowed 33 ft (10 m) above the drilling floor and includes an internal hydraulic cylinder that extends and closes the padded jaws operated by a radio remote control. The CSA uses only three hydraulic cylinders to position and mobilize the pipe jaws, including a lifting, extension and clamping cylinder.
Safety features allow the device to interface with the rig’s anti-collision zone management system. The unit is rated for Class I, Division 1 locations and has double protection for dropped objects. A warning and alarm system is built into the CSA, along with an emergency shut-off control. A shear pin is installed on the unit as a safeguard for unexpected downward clash by hoisting equipment.
