OTC 2024: High-voltage swivel joint offers FPSO, floating wind applications



Models 481 and 483 are both suitable for use in offshore applications including wind platforms.



“For example, the HVES Model 483 provides the yaw axis allowing alignment with the flow of current or air,” Deepak Jagannathan, Moog’s manager of strategic growth and innovation, told Offshore. “Subsea moorings, which connect a rotating wind turbine to the seafloor, can include an IP68-rated subsea swivel for permanent immersion, providing flexibility on the mooring and structure design.”



Moog developed its Model 483, first launched at OTC 2023, from its workhorse MV power swivels for the FPSO market, and it has been installed in more than 60 locations worldwide with an uptime of 99.92%.



“The Moog HVES is an industry first; the first production unit is being built now,” he said. “We have a large install base (200+) of similar situations that are rated for lower voltage. These are successfully operating around the globe.”

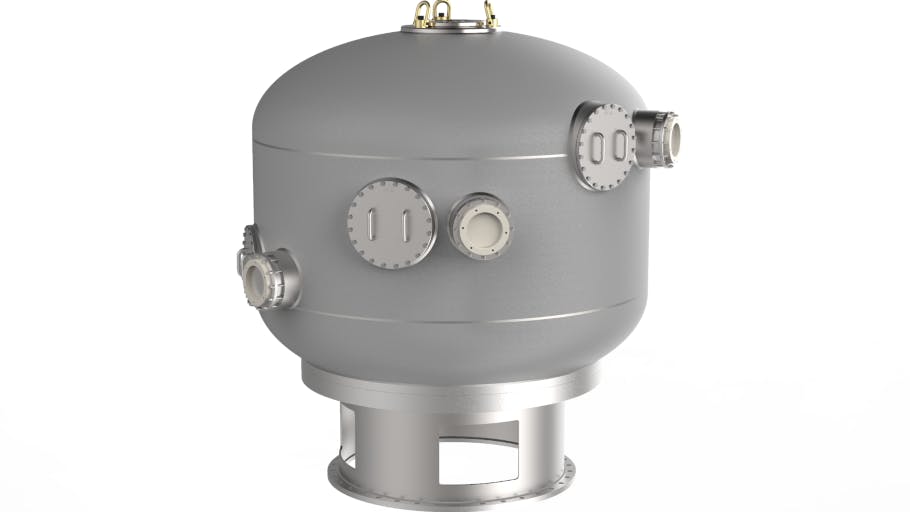

The company said the Model 483 HVES is the only high-voltage option on the market that handles greater than 52 kV. It is rated at 72.5 kV (66 kV operating) for pivoting offshore applications. The HVES stands 2,300 mm with a diameter of 2,510 mm and weighs about  5,280 kg.



Jagannathan added, “Existing solutions in the market help transfer high-voltage power up to several tens of kV and currents of up to 2,000 amps in offshore environments, but the Moog HVES can transfer up to 145 kV, which is five to six times higher than what’s currently available on the market. This higher voltage equates to faster charging for example.”



All of Moog’s floating production system swivels are certified for use in hazardous locations.

The company’s designs adhere to IEC codes, and DNV has independently verified the technology.



High-power electrical swivels help power subsea equipment, remote production platforms and transfer power from renewable sources like wind and tidal. The swivels also allow offshore assets (including vessels) to be powered and charged from green power sources offshore.



“Moog swivels enable the transfer of power, signals and fluid across a rotary interface,” Jagannathan said. “For example, swivels are part of a floating production system’s (FPS) turret and help the FPS weathervane around the mooring system and the mooring line. In harsh weather, a turret mooring system is essential. Using the turret, the platform can rotate while moored to the seafloor. As renewable power becomes more important offshore, swivels are critical for construction of wind platforms. Swivels are for any application requiring a product that can withstand harsh marine conditions or requires long life with minimal maintenance intervals.”



So far, the company has completed some engineering studies for the Model 483, but the first case studies are forthcoming with the initial installations on the way.
